automated passenger counter camera for bus

Item No.: HPC 168
automated passenger counter camera for bus is used for counting passengers going in and out of a bus, it can also used for ship, train, etc
Description
First of all, please check below 1 miniute video for our HPC168 automated passenger counter camera for bus, and you can find more details below the video.


HPC168 automated passenger counter camera for bus is widely applied in buses, coaches, metros and other public transportation tool passenger automatic counter application field. It possesses high-performance communication media processor with Hisilicon video purpose hardware acceleration engine. Adopted with main development dual-camera depth algorithm model, it conducts dynamic detection on cross-section, height and movement trajectory of the passenger target, and in turn, obtains comparatively high-precision real-time passenger flow data, providing RS45 or RS485 interface to conduct data interaction and sharing with third-party equipment, which is very convenient for data depth development.

HPC168 automated passenger counter camera for bus can be adjusted from 0-180 degrees, to meet all passenger car environment installation requirements. The built-in wiring method enables perfect integration of HPC168 counter and passenger car environment.

HPC168 automated passenger counter camera for bus adopts integrated design which combines depth camera and calculation main control board, so as to minimize interference factors on camera image information to the lowest level, and possibly to the uttermost decrease construction wiring difficulty level. The one-button debugging mode can quickly complete environmental parameters collection required by HPC168 counter, with no assistance from other equipment terminals.

HPC168 automated passenger counter camera for bus RS485, RS232 Communication Protocol
    1. Interface Type: standard RS-485\RS232 interface.
2. Data Format: baud rate 2400-115200bps, 1 start bit, 8 data bits, 1 stop bit, no parity.
Protocol format
    3. Protocol Format
Except STX and ETX, all data are transmitted in hexadecimal ASCII format.
4. Protocol Explanation:
Name Length Meaning Explanation and Demonstration
STX 1 Start symbol Corresponding hexadecimal is 0x02
ID 4 485ID address
CM 2   11 (corresponding hexadecimal 0x31 0x31)
22 (corresponding hexadecimal 0x32 0x32)
LEN     2 data length 01 (corresponding hexadecimal 0x31 0x31) DATA1data length is 1
02 (corresponding hexadecimal 0x32 0x32) DATA1data length is 2
DATA1 LEN Data 1 01 (0x30 0x31) corresponding LEN is 1
0102 (0x30 0x31 0x30 0x32) corresponding LEN is 2
DATA2 LEN Data 2 System reservation
CHK 2 Checksum No-carry accumulative sum of all data after STX and before ETX. Transform to ASCII code, if checksum is 0x12, then checksum ASCII code is 0x31 0x32
ETX 1 End symbol correspondinghexadecimal is 0x03

5. Command Set
5.1 Data Reset
CM:0x12
    LEN:0x00
Upon receiving data reset command, HPC168 counter clears internal counter, and returns to response frame.
e.g. Send data reset command to HPC168 counter with address 0x0001.
STX ID CM LEN DATA1 DATA2 CHK ETX
0x02 0x30 0x300x30 0x31 0x31 0x32 0x30 0x30 0x31 0x33 0x03

Response:
Correct response means passenger flow sensor has already executed and completed command contents.
STX ID CM LEN DATA1 DATA2 CHK ETX
0x02 0x30 0x300x30 0x31 0x39 0x32 0x30 0x31 0x30 0x36 0x39 0x41 0x03

Error response: (e.g. ID=0002)
STX ID CM LEN DATA1 DATA2 CHK ETX
0x02 0x30 0x300x30 0x32 0x39 0x32

0x30 0x31

Error response means HPC168 Bus Passenger Counter cannot recognize the instruction (packet loss issue) or algorithm internal conflict which leads to inability to complete processing instruction content.
If HPC168 Bus Passenger Counter displays error response, it requests the host computer to resend data, up to 3 times, with interval no less than 1s.

5.2 Passenger Flow Data Query
    CM:0x13
     LEN:0x00
Passenger flow data query is initiated by the host computer. Upon receiving command, HPC168 counter returns present accumulative passenger flow data.
e.g. Send passenger flow data query command to HPC168 counter with address 0x0001.
STX ID CM LEN DATA1 DATA2 CHK ETX
0x02 0x30 0x300x30 0x31 0x31 0x33 0x30 0x30 0x31 0x34 0x03

Response:
CM:0x93
     LEN:0x10
HPC168 Automatic Passenger Counter Camera for bus returns present accumulative passenger flow data.
DATA1: Divided into in, out, 8 bytes, unsigned integer.
DATA2: No effect, padded with 0.
among which: corresponding passenger flow sensor for in and out are accumulative number of guests coming in and number of guests coming out (hexadecimal).
e.g. ID=0001 HPC168 counter has number of guests coming in of 34 and number of guests coming out of 35, then returns:
STX ID CM LEN DATA DATE CHK ETX
0x02 0x30 0x300x30 0x31 0x39 0x33 0x31 0x30 0x30 0x300x300x30
0x30 0x30 0x32 0x32
0x30 0x300x300x30
0x30 0x30 0x32 0x33
0x30 0x300x300x30
0x30 0x300x300x30
0x30 0x300x300x30
0x30 0x300x300x30
0x45 0x39 0x03


Dimensions:

Installation size:


Ports



Introduction


HPC168 automated passenger counter camera for bus provides rich data interface:

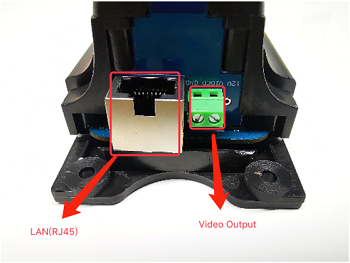

1. RJ45 network interface
Via RJ45 interface and HPC168 counter connection, client tool program views or sets working status and operates parameters. At the same time, HPC168 counter submits passenger flow data to the designated server in real time through RJ45 network interface.
2. Composite video output interface
Can be connected with vehicle-mounted display to visually display passenger counting results. Can also be connected with vehicle-mounted video recorder to save the passengers dynamic video of getting-on and getting-off in real time.
3. RS485 interface or RS232 interface
Provides one-way RS485 or RS232 for third-party equipment to conduct data calls, customizes baud rate and communication ID code.
4. Vehicle door switch signal
Can receive 8-36V voltage range vehicle door switch signal input. HPC168 counter stops counting once vehicle door is closed, and automatically starts counting when vehicle door is opened.
  485 232
Network interface
Video interface
Vehicle door switch
Communication interface RS485 RS232

The HPC168 counter uses adjustment software to configure working parameters,

Main Functions of HPC168 automated passenger counter camera for bus
  • Built-in image anti-shake algorithm, strong environment adaptability;
  • Algorithm correction function, adaptive lens angle, focus information, allowing a certain angle tilt with the horizontal direction;
  • Counting accuracy is not affected by passenger body form, clothing color, hair color, hat and scarf, etc.
  • Counting accuracy is not affected by passengers passing side by side, crossing passing, and blocking traffic;
  • Height limit can be set on target, passenger baggage error can be filtered;
  • With the status of the bus door switch as the trigger condition, it starts counting when door is opened, captures real time statistical data, and stops counting when door is closed;
  • Possess strong scalability and portability, can be installed according to the number of vehicle doors;
  • Unaffected by the season and weather, unaffected by figure shadows or shades, unaffected by external light, automatically activates infrared fill-in light at night to have the same recognition accuracy;
  • Easy to install, support 180°installation, strong environment adaptability.
Specification of Bus Passenger Counter
Project Equipment Parameters Performance Indicators
Power supply DC12~36V Voltage fluctuations of 15% allowed
Power consumption 3.6W Average power consumption
System Operating Language Chinese/English/Spanish
Operation interface C/S operation configuration mode
Accuracy rate 95%
External interface RS485 interface Custom baud rate and ID, multi machine network supported
RS232 interface Custom baud rate
RJ45 Device debugging, http protocol transmission
Video output PAL, NTSC system
Operating temperature -35℃~70℃ In well ventilated environment
Storage temperature -40~85℃ In well ventilated environment
Average failure-free time MTBF More than 5,000 hours
Installation height 1.9~2.2m
Environment illuminance
0.001 lux (dark environment) ~ 100klux (outdoor direct sunlight), no fill-in light needed, accuracy rate not affected by environment illumination.

Earthquake resistance level
Meets national standard QC/T 413 "Basic technical conditions for automotive electrical equipment"

Electromagnetic compatibility
Meets national standard QC/T 413 "Basic technical conditions for automotive electrical equipment"

Radiation protection
Meets EN 62471: 2008 “Photo-biological safety of lamps and lamp systems”

Degree of protection Meets IP43 (completely dust-proof, anti-waterjet intrusion)
Heat dissipation Passive structural heat dissipation
Size 178mm*65mm*58mm
