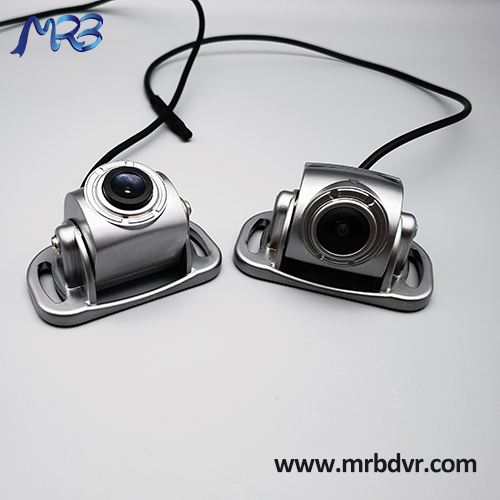

AHD Vehicle Camera

1080P AHD camera
IP69K water-resist
110 degree, 179 degree.
chromium-plating
Description
We have different kind of AHD vehicle Cameras for your reference :

 1.AHD vehicle camera advantages :


◆AHD high-definition image sensor, high-definition image quality, effective resolution of 1920 * 1080;

◆Ultra wide actual angle:Diagonal 201, horizontal 182 degrees, vertical 126 degrees。Theoretical value:(205 degrees, 193 degrees ,128 degrees)

◆Digital wide dynamic, Penetrating fog function, strong light suppression, 2D / 3D noise reduction and other functions;

◆Aluminum alloy movement, heat dissipation material, embedment seal, waterproof IP69K;

◆Light plastic material is adopted for the mounting base, which can be installed in a universal way for convenient angle adjustment

◆Small, easy to install, convenient to adjust and install

◆Low light night vision function

2.AHD vehicle Camera specifications :


Effective resolution: 1920 (H) × 1080 (V)

Effective pixels: 2.8um x 2.8um pixels

System Format : PAL

Day and night mode: Color + black and white

Signal to noise ratio: ≥ 48dB

Minimum illumination: 0.04lux

Backlight compensation: (BLC) Auto

Automatic electronic shutter: (AES) auto / 1 / 50 (1 / 60) - 1 / 100000sec

Automatic white balance: (AWB) Auto

Video output: AHD video

Space occupied by video recording: 1min ≈ 32MB

Working voltage: DC12V / 75ma ± 6mA (wide voltage 9v-18v)

Working environment: - 30 ℃ - 60 ℃



MRB AHD vehicle Camera Video for your reference :

We have H.265 1080P full frame MDVR to work with this camera, please click the below photo for more information :
MDVR 1080P
