IR People Counter Sensor

Item No.: HPC005S
1. Battery operated for truly wireless installation
2. Side and Dual IR Beam
3. Integrated 6-digit LCD display
4. Up to 60 Ft. IR transmission range
5. 2.5 x 2.3 x 0.98" ABS enclosures
6. Optional flush mount bracket
Please check below video for a brief introduction of this product,and more details below the video.

A whole set of IR People Counter Sensor includes a transmitter sensor (TX), a receiver sensor (RX), a data receiver/ collector (DC), adapter for DC, USB cable to connect DC with computer, battery for sensors, disc with stand alone software in, stickers and screws for installation.

1. Battery operated for truly wireless installation
2. Integrated 6-digit LCD display
3. Directional data (in and out)
4. 92-96% accuracy rate
5. Up to 20 meters detection range
6. Peel-stick-count, easy installation
7. 2.5 x 2.3 x 0.98" ABS enclosures
8. Customized hardware and software
9. Data centralized for chain stores
10. API available
11. Working in dark environment
Model HPC005
Power Supply 1.5v/ 3.6v AA or lithium battery for sensors; Adaptor/ USB powered for DC
Weight 400g
Dimension 2.5 x 2.3 x 0.98"
Operating Temperature -10~ 40℃
Color White, or Customized
Installation All kinds of stores, library, Museum, Hospital, School
Operating Current for Receiver (RX) 180μA
Static State Current for Receiver (RX) 70μA
Operating Current for Transmitter (TX) 200μA
Static State Current for Transmitter (TX) 80μA
Detection Way Infrared Rays
Counting Way Straightaway Shot and Shade and then Count
Data Transmitter Period 5 Minutes from RX to DC - customized; Immediately - DC to software
RF Transmission Frequency 433MHz, Encrypted
Connection Way RX to DC by RF Transmission,  DC to the Ethernet directly (HPC005S)
Standalone software For signal store, above windows 2003
Network software For chain stores, above windows 2003 and SQL2005 serve.
Height 1.2meter, face to face
Wide ≤20 meters
Fixed Way Screws or Stickers
Range from Sensors to DC ≤40 meters
Occupancy control function:
Peel-stick-count,easy installation

Real Installation pictures:

We have another model HPC005, the link is as below:
What is the difference between them?
HPC005 with DC connected into computer directly, while
HPC005S with DC connected into LAN directly, no computer needed.

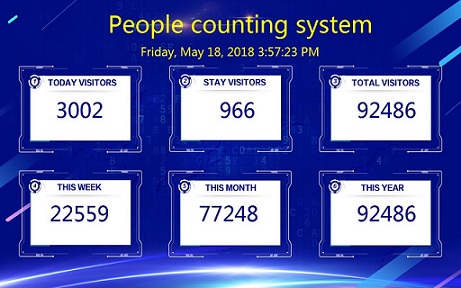

Please click below picture of our People counting camera system for your reference:
