Truck camera system

Item No.: H8SSDWJ
The Truck camera can monitor the whole process of the truck moving, and the video images captured are stored in the video recorder. Once an accident or accident occurs, the information in the DVR of the truck can be exported for retrieval and viewing.
Description
MRB Truck camera system belongs to the segment market of traditional embedded hard disk video recorder. It is a new special product developed with the application of digital video and audio coding technology in vehicles. The vehicle mounted hard disk video recorder combines advanced technologies such as digital video and audio coding, hard disk storage of large capacity data in harsh environment, automobile electronics, wireless video network transmission, GPS satellite positioning and other advanced technologies to realize the video and audio monitoring of truck industry and other related fields. The Truck camera can monitor the whole process of the truck moving, and the video images captured are stored in the video recorder. Once an accident or accident occurs, the information in the DVR of the truck can be exported for retrieval and viewing.


Truck camera system Product characteristics :
1.The latest standard H.265 ( Huawei chip Hi3521D) High Profile Compression ,motion adaptive dynamic stream.
2.Real-time 4/8CH 1080P, 4CH: PAL -100Frame/sNTSC -120 Frame/s., 8CH: PAL -200Frame/s NTSC -240 Frame/s.
3.Support real-time local monitoring,3G/4G , WIFI OR RJ45 can be real-time remote monitoring,remote dialogue.
4.Supporting intelligent power management to ensure that the automotive power supply is safe to start.
5.Supporting illegal power failure to protect video files and  ensure the integrity of the video.
6.Supporting short circuit protection and removing short circuit fault intelligent reset.
7.Support infrared extension operation, mouse operation and video indicator plug-in.
8.Unique anti-seismic design structure, Quick installation .
9.Supports all 2.5-inch SATA SSD solid-state drives.
10.Support a variety of video recording methods, automatic continuous video recording,open the door trigger video recording, timing video recording.
11.Supporting 1, 4 and 8 routes to play back 1-32 speeds at the same time on the equipment.
12.Supports wide voltage input and can work steadily in the range of 9V to 36V DC.
13.The equipment shell is made of alloy material, which can prevent aging,interference and combustion.
14.The power input port and video input and output port of the equipment are all aviationplugandbmwplug, and the interface is stronger and more reliable.Fault-proof interface.
15.Support two kinds of video transmission VGA, CVBS, and can be used at the same time.
16.Automatic Lock Disk Installation Technology, One-click Disk Removal, Fast and Convenient.
17.Anti-theft basket design, both anti-theft and anti-pull wire and play a role in heat dissipation.
18.Small size, light weight, simple and convenient installation.
19.Patent products, counterfeiting must be investigated.

Truck camera system Product installation drawing :


Truck camera system Main Functions :

Function
Functionsdescription
Recording
1. Support fourvideo mode:Starting uprecording、time recording、
    motion detection recording、Alarm recording.
2. Support 4 channel D1 or synchronous 4 channels 1080P
    recording.
3. Support PAL or NTSC system, Automatic recognition pattern.
4. OSD overlay recording,such as time, Bus No., Channel’s name,
    Stops information etc.
5. Support HDD and SD Card and USB circulating record.
Record
1. Support 4 channels audio input(4CH)
2. Support 8channels audio input(8CH)
3. Audio and video synchronousprocessing
Playback
1. Supportsynchronous 1 ,4 channels playback (4CH)
2. Supportsynchronous 1 ,8 channels playback (8CH)
3. supportplay, pause,frame into,slow play, fastforward, uppersection,
    nextsection andmute function
4. Video/File retrieval: Support time retrieval, channels retrieval and
    video typeretrieval.
Alarm
Support local signal alarm, motion detection alarm and abnormalalarm.
Information
record
Support VehicleNo、driving route、device No record.
ON/OFF
Control
1. Support fixed timing starting up and shutdown
2. Support Car Key (ACC) switch or ACC delayswitch
3. Power management voltage on / off machine

Truck camera system Main Parameters :

            Suitable for: H4SSD series, H8SSD series, H4HDD series, H8HDD series
Items Parameters Specifications
System operating system embedded Linux
Language Chinese/English/ Russian/traditional
OSD Graphical User interface (OSD menu)
Password login Users Password/ Administrator Password
Fle system Error correction encrypted file management system
Vision Video input 4CH OR 8CH  CCD / AHD (1080p or 720p) mixed input
VGA output 1ch, support 1920*1080, 1280*720, 1024*768
CVBS output 1ch aviation output PAL/NTSC, 1.0Vp-p, 75Ω
Preview Support Single/four/eight CH preview.
RecordingRatio 4CH: PAL -100Frame/s NTSC -120 Frame/s
8CH: PAL -200Frame/s NTSC -240 Frame/s.
System resource 4CH PAL: 100FPS; NTSC: 120FPS 8CH PAL:200FPS; NTSC:240FPS
Audio Audio input 4ch independent,600Ω    8ch independent,600Ω
Audio output 1ch output,600Ω,1.0-2.2V
Record format Synchronized video & audio
Audio compression G711A
processing
& storage
Image compression H.265,Variable stream(VBR) / Fixed stream (CBR)
Video format CIF/D1/720P/1080P optional,  default 1080P(1920*1080)
Video bit rate CIF: 128kbps ~ 5mbps,10levels optional,default 4 level(512kb),Highest:10  level, lowest 1 level
D1: 128kbps ~ 5mbps,10levels optional,default 5 level (768kb),Highest:10  level, lowest 1 level
720P:128kbps ~ 5mbps,10 levels optional,default 7 level (2mb),Highest:10  level, lowest 1 level
1080P:128kbps ~ 5mbps,10 levels optional,default 10 level (5mb),Highest:10  level, lowest 1 level remark:system default 1080P,
9 level(4mb)
Video space taken 0.45G-1.76G/hour per channel 1080p and Full frame
Record format  Synchronized video & audio
Audio bit-rate  4KByte/s(per channel)
HDD or ssd storage 1*SATA 2.5’’ hard drive  ( 7mm thick,  support to 4T )
SD storage  1*SD card storage (support to 256GB)
Alarm Alarm input 4 switching value,Below 4V is low level, above 4V is high level alarm

Network


RJ45 1x RJ45 optional, 10M/100M/1000M
Wifi Optional built-in wifi module 2.4GHz/5.8GHz (IEEE802.11n/g/b) for remote video check and download
3G/4G Optional  built-in 3G/4G modules(FDD-LTE/TD-LTE/WCDMA/CDMA200)
Gps Optional built-in GPS / BeiDou module, Default GPS
Communication interface 1. 1RS232 interface, support 1 RS232 interface (can extend multiple
    232 and 485 interfaces),
2  1 RJ45 for cable transmission
3. 1 IR extension interface
4. 1 USB  HOST port  External video recording, mouse operation
5. 1 SD card slot for storage or upgrading
Upgrade Support SD cards upgrade.
power input Input voltage is +9V~+36V, power management function, power failure protection
Super power 10V Rechargeable power supply for protection of video files in case of illegal power failure
output voltage Output voltage is 12V (+/ -0.2v), maximum current is 2A.


Truck camera system Powerful power supply :

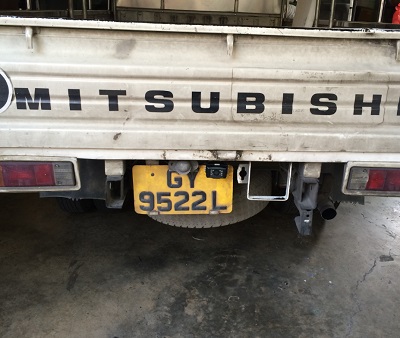

Installation

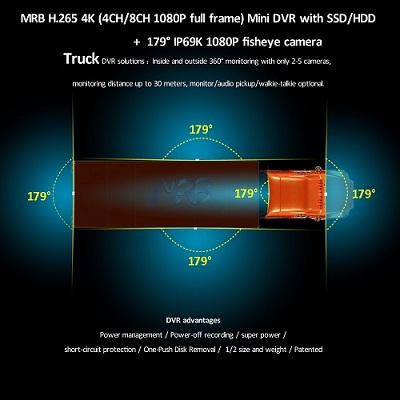

4 cameras inside and outside 360° monitoring



Truck Camea GPS trakcing and fleet management systems/ truck camera software:
