HD 1080P With Dual cameras
IP69K waterproof
Aviation or BMW plug
180° or 120° optional
suitable for all MDVR or DVR
OEM or ODM available

INQUIRY

Description

HD1080P VEHICLE CAMERA with double lens

1，Feature

◆ 2 million AHD CMOS high-definition image sensor;
◆ Low illumination, low-light night video does not need infrared supplement light;
◆ High-definition picture quality, effective resolution 1920(H)x1080(V);
◆ Coaxial HD output, delicate, with digital wide dynamic;
◆ Adaptive digital noise reduction, 2D-DNR, 3D-DNR;
◆ Silicone composite material has excellent heat dissipation and waterproof grade IP69K;
◆ Working voltage DC 9-14V;
◆ Small size, lightweight 110g;
◆ Easy to install, 30° universal angle adjustment;
◆ Can make fisheye 180°and 120°(optional during production)
◆ Multiple interfaces are available: BMW connector, Aviation connector, BNC, default BMW connector.
◆ Imaging effect: positive image

2，Vehicle Camera Technical Parameters

Technical items	Technical index
Optical Format	1/2.9" 2 million pixel CMOS (ultra-low illumination)
Pixel Size	2.8μm×2.8μm
Active pixel array	1920×1080
ADC resolution	10 bit ADC
Output formats:	Raw Bayer 10bit/8bit
Max Frame rate	30fps@full size
MAX SNR	38dB
Sensitivity	3.87 V/lux·s
Dynamic range	81 dB
Lens ray angle(CRA)	12°( linear)
Minimum illumination	0.01Lux@(F1.2,AGC ON)
Shutter speed	Auto shutter 1/30 second to 1/10000 second
Exposure mode	Default automatic
Wide dynamic	stand by
Night vision function	Low light night vision
Color to black	Auto/B&W/Color
Connector	BMW connector, aviation connector optional
Installation method	Horizontal, vertical (default horizontal)
Adjustable angle	Vertical body side mounting
Transmission distance	Max support 45 meters
Operating temperature	-25°C-70°C
Working humidity	0%-100%
power supply	DC 9~14V
Power consumption	<0.96W
Protection level	IP69K
Size	819643 mm
weight	198g

3，Lens technical parameters

No1：Lens (FOV) 180° parameters	No2：Lens (FOV) 120° parameters
Field Angle: D205°H193°V128°	Field Angle: D135°* H112°*V98°
Image format: 1/2.7" 3mp	Image format: 1/2.7" 2mp
ELEMEENT: 6G+1IRF	ELEMEENT: 4G+1IRF
Focal length: 1.78mm	Focal length: 2.8mm
Aperture: F2.0	Aperture: F2.0
Wavelength: IR 650	Wavelength: IR 650
Optical Distortion: <9.2%	Optical Distortion: <-20%

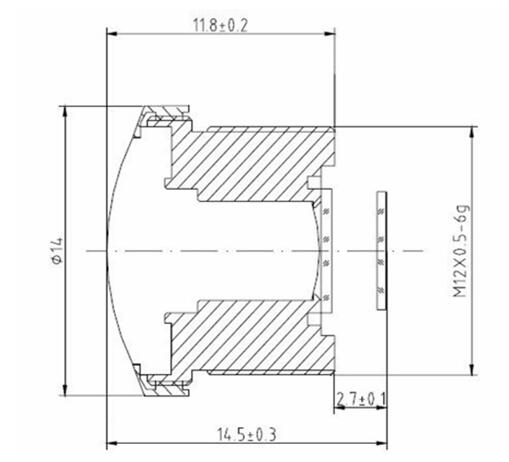

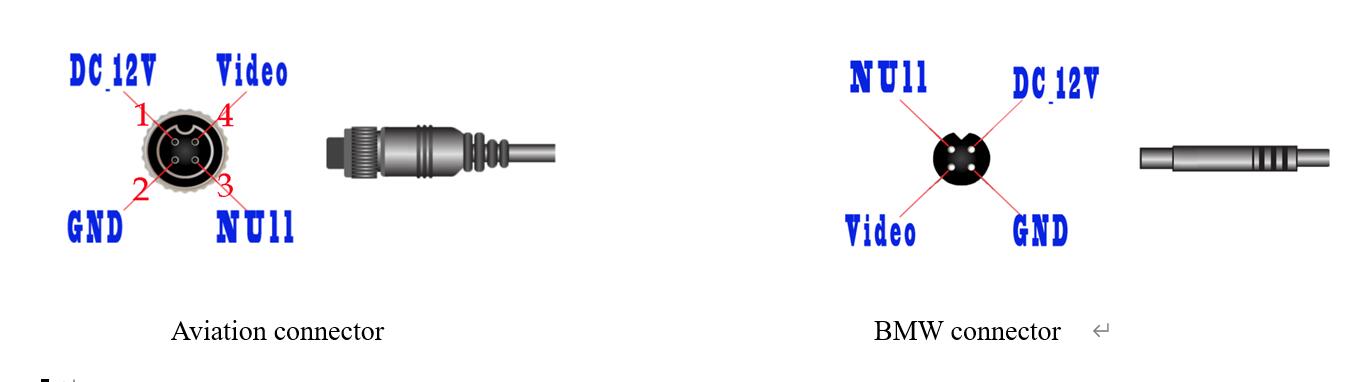

4，Connector pin definition

5，Specification drawing

6，Installation

Put the camera in the pre-installation position, and then install the screws S1, S2 to the corresponding vacancies H1, H2 and tighten them firmly.

7，Debugging and precautions

A、Loosen the screws

Loosen the screws S1, S2, S3, S4, S5 (Note: Camera B and F can be adjusted when the screws are loosened, do not fall off the screws)

B、Adjust the elevation angle of the camera.

Adjust the horizontal angle of camera B and F, the maximum adjustable angle of B is 43°, the maximum adjustable angle of F is 60°

C. Adjust the up, down, left, and right, and horizontal angles of the camera.

Adjust the rotation angle of camera B and F. The rotation angle can be 360°. After adjustment, tighten the screws S1, S2, S3, S4, and S5.

8，Scope of application

Transportation, escort leasing, tourism, schools, agencies, traffic p0lice, patrol, urban management, customs, border defense, insurance, security, mineral energy, corporate inspections, environmental protection, agriculture, oil fields, meteorology, water conservancy, land, mines, highways, Power, railway, sanitation and other fields, etc.
